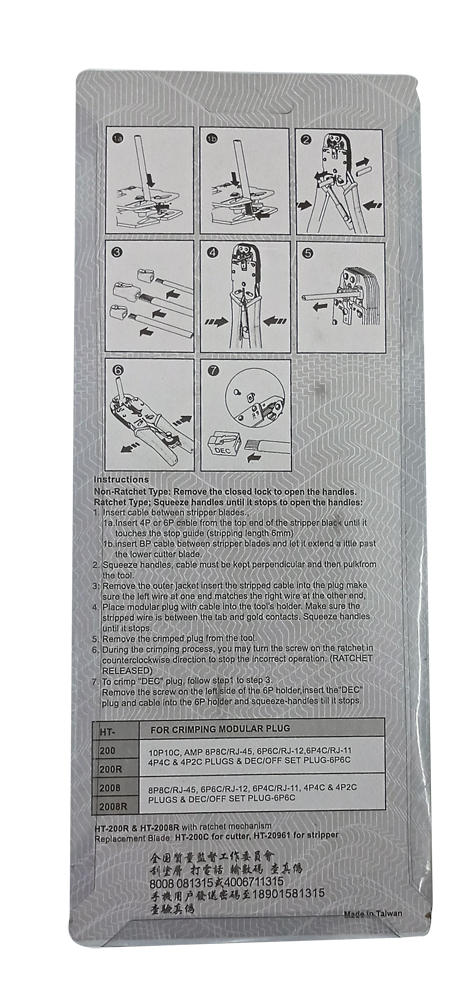

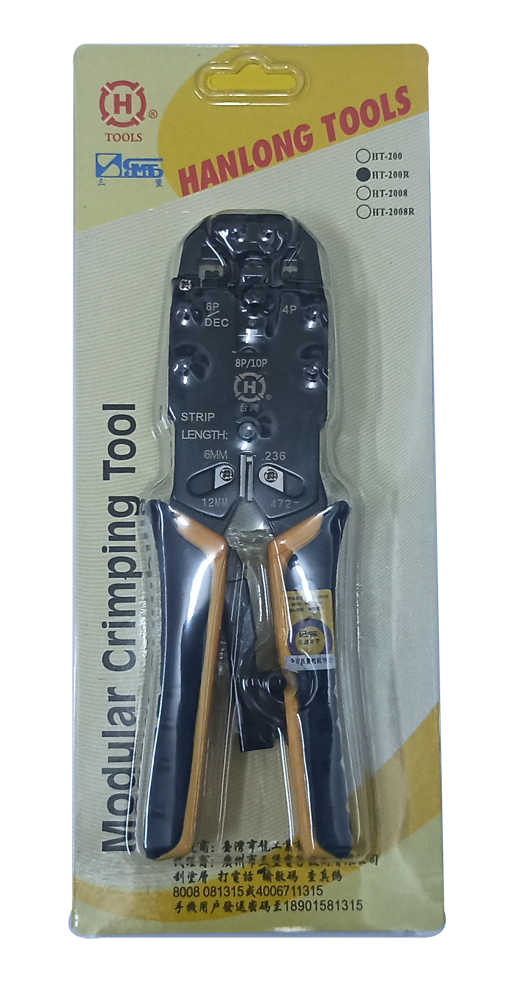

Non-Ratchet Type: Remove the closed lock to open the handles.
Ratchet Type: Squeeze handles until it stops to open the handles:
- Insert 4P or 6P cable from the top end of the stripper black until it touches the stop guide (stripping lengthen 6mm)
- Insert BP cable between stripper blade and let it extend a little past the lower cutter blade
- Squeeze handles, cable must be kept perpendicular and then pulkfrom the tool.
- Remove the outer jacket insert the stripped cable into the plug make sure the left wire at one end matches the right wire at one end,
- Place modular plug with cable into the tool’s holder.Make sure the stripped wire is between the tab and gold contacts. Squeeze handles until it stops.
- Remove the crimped plug from the tool.
- During the crimping process, you may turn the screw on the ratchet in counterclockwise direction to stop the incorrect operation. (RATCHET RELEASED)
- to crimp”DEC” plug, follow step 1to 3.Remove the screw on the left side of the 6P holder, insert the “DEC”plug and cable into the 6P holder and squeeze-handles till it stops.
